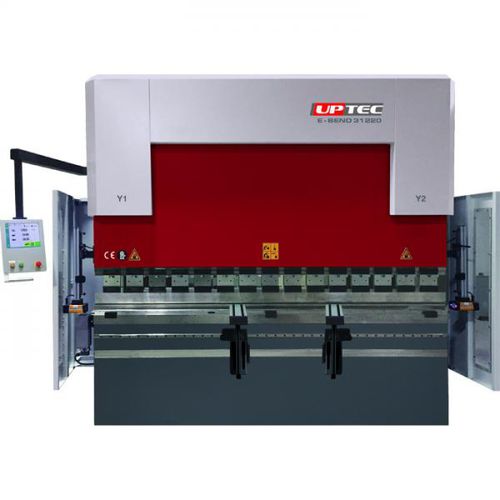

Hydraulic press brake E seriesCNC2-axis
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Backgauge
- 2-axis
- Folding length
Min.: 1,300 mm
(51.2 in)Max.: 6,100 mm
(240.2 in)
Description
• Y1-Y2-X axis
• Cybelec CybTouch 12 PS-2D Touchscreen Graphical CNC control unit & 2D offline PC Software or ESA S630 Control Unit
• Pendant control panel
• X-axis backgauge : AC motorised & linear guide & ballscrew system with 2 pcs. backgauge fingers
• European (promecam) quick release top tool clamping system
• European top tool grinded & hardened
• European bottom tool with 4V-groove
• Manual table crowning system with wedges (on 260 & 320 tons)
• CNC motorized table crowning system with wedges (on 400 tons and 6 meters)
• Back light barrier
• Switched side protection doors for safety
• Interior area lighting
• Linear sliding front support arms with 2 pcs. arm
• High accuracy optical linear scale
• European hydraulic system
• European electric system
