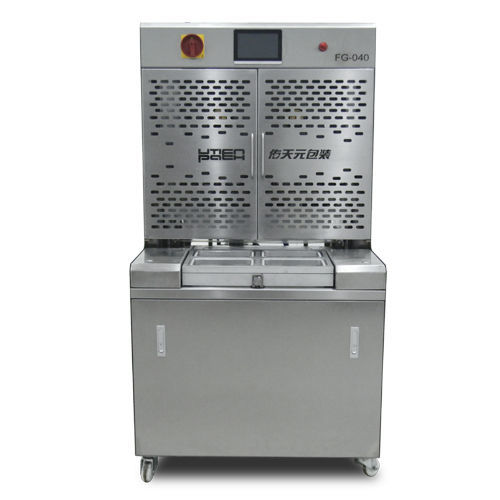

Semi-automatic Tray Sealer
FG 020/040
Semi-auto tray sealer is featured with two different types of package. MAP and vacuum skin pack.It's perfect for the package of fresh,refrigerated and frozen food,ncluding meat, poultry, seafood, sausages, bacons and prepared fast food.
Usually, the capacity is usually 2-3 circles/min.
Attractive package with top VSP(UniFresh ®) technology. With top Busch vacuum, we can make residual oxygen lower than 1%.
Applied to trays of various shapes and sizes.Anodized aluminum mold with drawer-type design.
Machine Parameters
Dimensions:804mm*1380mm*1844mm
Weight:500kg
Working Parameters
Package Type:MAP/VSP
Speed:2-3cycles/min
Tray Quantity/mold:2/3/4
Tray Shape:Circular,Oval or Rectangle
Top Film
Material:Sealable PE\PA Multi-layer Co-extruded Plastic Film
Print:Pre-printed Top Film or Transparent Top Film
Roll Diameter:250mm at most
Thickness:≤200um
Components
Vacuum Pump:BUSCH
Electrical Components:Scheneider
Pneumatic Components:SMC
PLC, Touch Screen & Servo Motor:DELTA
