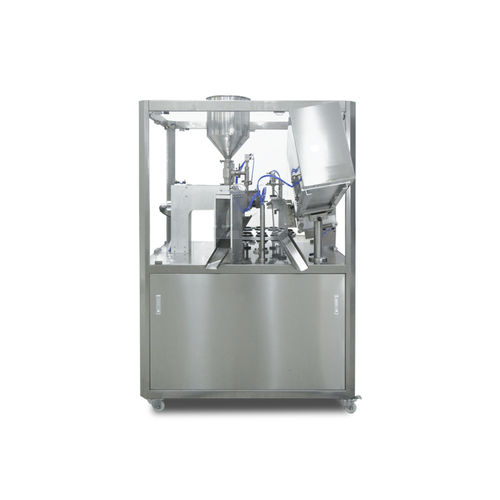

Ultrasonic Tube Sealers
DGF-25C
Ultrasonic tube sealer is integrated with auto tube loading position turning filling ultrasonic sealing edge cutting and output. It makes fast and less space occupied.
It is the perfect choice for cosmetic cream or other cream product tube filling and sealing. Its technology is a perfect solution for cosmetic or other liquid/semi-liquid product tube sealing.
Advantage
Top tube welding technology
Plastic molecules are strongly jointed together with ultrasonic power, firm and nice welding regardless of cream remaining on tubes.
Rotary working process
To ensure working efficiency, we apply high quality aluminum alloy to make the rotary table and tube base. Such design is durable and decent and easy to maintain.
PLC control system
User-friendly operating screen, easy control with finger touch.
Auto tracking system
With ability to track and adjust the frequency of ultrasonic wave, we ensure every stable sealing result.
Machine Parameters
Dimensions:900mm*800mm*1650mm
Weight:400-500kg
Frame material:304 SUS
Mold material : 6016 Aluminium
Capacity:0-25PCS/min
Control : PLC control
Tube
Sealing Widths:3-8mm(Customizable)
Sealing Length:<85mm (Diameter<50mm)
Tube length:<200mm
Filling volume:<200lm
Material:PP
Filling product : liquid or half liquid
