Training set XFMR series

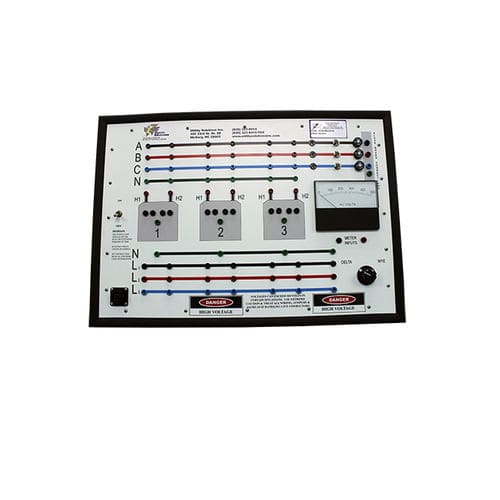

The Load-Trainer‌ Transformer Simulator is a fully functional electrical trainer that allows for the simulation of most distribution transformer connection schemes. This makes the Load-Trainer‌ a valuable addition to any safety and training program. The Load-Trainer‌ Transformer Simulator has the capability to connect single-phase and the following types of three-phase transformers: Delta-Delta Delta-Wye Open Delta-Open Delta Wye-Delta Wye-Wye Wye (one leg out)-Open Delta TRAINING Hidden toggle switches enable an instructor to introduce common problems and situations that could arise in a real world scenario. Some of these include: Low voltage bushing hook-ups A change in Polarity Back-feeding High side phasing An Open primary An Open secondary There are two Load-Trainer‌ models: XFMR-3BUSHING simulates low side voltage three bushing transformers The XFMR-4BUSHING simulates low side voltage four bushing transformers The XFMR-PRL option supplies an additional front panel that acts as a slave unit to the standard front panel. An optional Phase Rotation Meter is also available. The Load-Trainer‌ Transformer Simulator comes in two cases that include wheels and are easily transported. A complete user manual with illustrated examples is also included. The unit is powered using a conventional 110 VAC power outlet.
