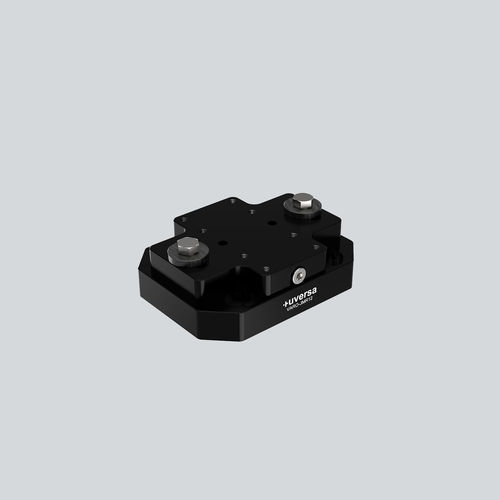

Linear-rotary positioning module VARO-JMR12

Description
The VARO-JMR12 Adjustment Module 2.0 for mechanical engineering is the evolved version of the VARO-JM12, designed for precise alignment in the X/Y plane and reliable compensation of manufacturing tolerances. It offers an extended adjustment range of ±7.5 mm in X and ±4.5 mm in Y for increased positioning flexibility.

Features
The module features slotted mounting holes that allow linear and rotational fine adjustment of ±2.5°. Side-mounted adjustment screws enable precise tuning. Machined anodized aluminum construction; optional ESD-conductive SurTec® 650 coating available on request. Part of the uversa modular system for combination with mono and duo bases and other modules for modular machine construction.

Compatible modules

• PEX-MS12
• PEX-DS12
• EVO-KM12
• EVO-DM12

FAQ (summary)

• What is the VARO-JMR used for? — Precise adjustment of components in the X/Y plane to compensate manufacturing tolerances and simplify mechanical design.
• How does the VARO-JMR differ from the VARO-JM? — Next generation with extended adjustment range and slotted mounting holes enabling both linear and rotational fine adjustment.
• How is the adjustment performed? — Using side-mounted adjustment screws for fine tuning; combined with slotted mounting holes for a wide adjustment range.
• How is the VARO-JMR mounted? — Can be mounted on fixed work surfaces or integrated directly into assemblies; suitable for a wide range of installation positions.
• What variants are available? — Several anodized colors and an optional ESD-conductive, passivated SurTec® 650 coating.
• Which applications is it best suited for? — Mechanical engineering, fixture construction, testing and assembly systems requiring precise alignment and modular design.

Technical specifications

• Model name: VARO-JMR12
• Adjustment range X: ±7.5 mm
• Adjustment range Y: ±4.5 mm
• Rotational fine adjustment: ±2.5°
• Mounting: slotted mounting holes (allows linear and rotational adjustment)
• Material: Aluminum (milled), anodized
• Available finishes / Colors: Black anodized (standard), Blue anodized, Red anodized, Green anodized, Gold anodized, SurTec® 650 (ESD-conductive, passivated)
• HS code: 90330090
• Country of origin: Germany
• Typical weight (single module, variation): 0.250 kg
• System compatibility: uversa modular system (compatible with PEX-MS12, PEX-DS12, EVO-KM12, EVO-DM12)
