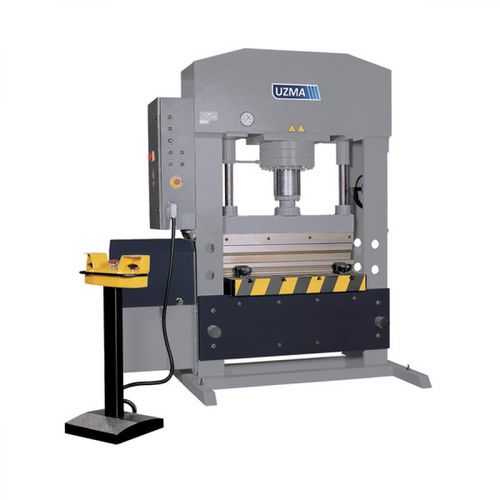

Hydraulic press UP Linebendinguniversal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- bending
- Other characteristics
- universal
- Force
1,000 kN, 1,500 kN
- Stroke
300 mm
(12 in)- Table width
1,020 mm, 1,520 mm
(40 in, 60 in)- Hydraulic pump power
7.5 kW, 11 kW
- Weight
1,900 kg, 2,400 kg, 2,500 kg, 3,100 kg
(4,189 lb, 5,291 lb, 5,512 lb, 6,834 lb)- Overall length
2,050 mm, 2,500 mm
(81 in, 98 in)- Overall width
1,000 mm
(39 in)- Overall height
2,220 mm, 2,380 mm
(87 in, 94 in)
Description
UP Line - Universal Hydraulic Pressbrakes
Standard Accessories:
"• Top gooseneck pressbrake die and holders
• Bottom die with 5 V-Channels
• Adjustment system for taking down or up the table
• Pressure gradeless adjustment
• Stroke stepless adjustable system
• Adequate work space for large sheet metal
• Manual and two hand working control
