Lubricated vacuum system 20/2
for vacuum infusion

lubricated vacuum system
lubricated vacuum system
lubricated vacuum system
lubricated vacuum system
lubricated vacuum system
lubricated vacuum system
lubricated vacuum system
Add to favorites
Compare this product


Characteristics

Configuration
lubricated
Applications
for vacuum infusion
Flow rate

20 m³/h, 24 m³/h
(706.29 ft³/h, 847.55 ft³/h)

Suction pressure

0.5 mbar
(0.007 psi)

Description

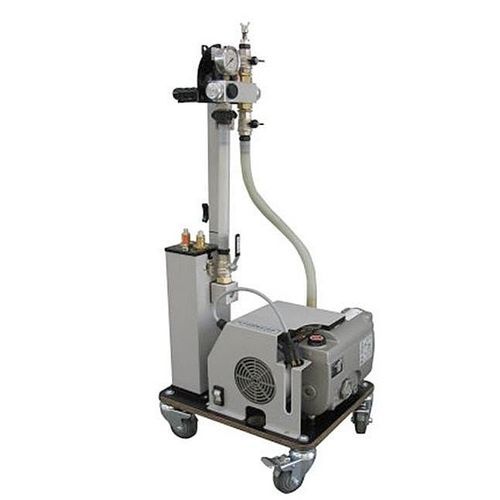

The original Vacmobile, the 20/2 mobile vacuum system is a proven performer ideally suited to resin infusion or vacuum bagging composite parts, where the resin overflow from the part will be less than 2 litres (4 pints). Don’t be fooled by its compact size – the 20/2 can successfully resin infuse vacuum bagged products as large as 185 m² (2,000 ft²) when supplemented by a larger (optional) resin trap. The 20/2 arrives ready to run on single phase power, so there’s no costly installation or complicated set up. Exceptionally mobile, the 20/2 allows you to get much closer to your work, where the vacuum is needed the most, which means greater performance and lower operating costs. The 20/2 vacuum system arrives complete with an integrated resin trap, vacuum gauge, vacuum regulation, coarse particle filter and motor overload protection. It is robustly constructed from proven Vacmobile components, including our unique O-ring sealed trap lid tubing connections, assuring vacuum integrity over a long working life The 20/2 has an optional Dual-Vac accessory that seamlessly converts the standard single vacuum level 20/2 into a dual vacuum machine suitable for small RTM Light and double bag infusion processing. This added scope is ideal for laboratories and training facilities where a range of processes need to be demonstrated, or for small manufacturers who are focussed mostly on infusion projects, but occasionally need the ability to undertake Light RTM jobs.
