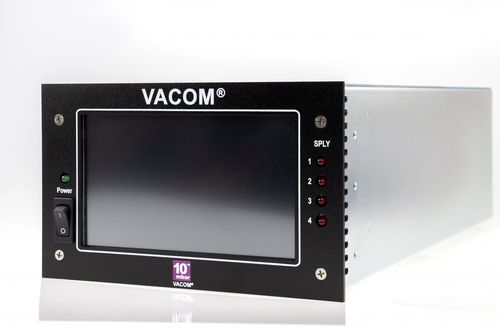

Pump controller for stand-alone applications MERKURION®

Category - MERKURION® Controller Item description - Controller for Ion Getter Pumps, 4 independent high voltage outputs at each +3000 .. +7000 V (positive polarity), max. 125 mA and max. 125 W with high voltage connector 10 kV SHV (SAFECONN). Wide VGA Touchscreen Color LCD display and interfaces RS232, RS485, Ethernet, analog out, and setpoints (4 Relay, 4 TTL)Dimensions: 3U high, 1/2 Rack wide, 438 mm depth, Weight: 9.5 kg. Max. output current - 125 mA Article no. - 376904 Length - 220 mm Length 2 - 133 mm Length 3 - 471 mm Set points TTL - 4 Set points Relais - 4 Current resolution - 1 nA Max. output voltage - 7000 V Max. output power - 125 W HV connector - SHV Purity class - PCS
