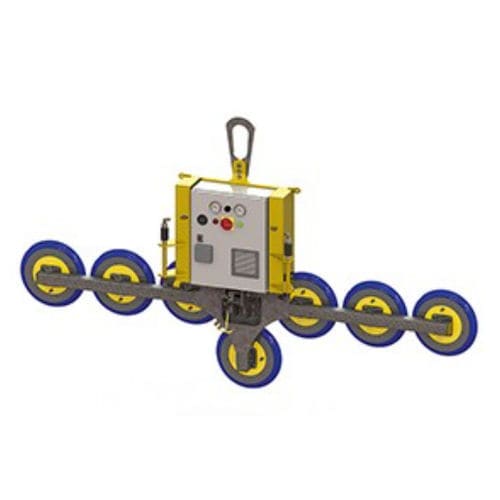

Glass plate vacuum lifting device DIA 500 BASIC

horizontalverticalelectric

The Systems of the Diamond series can lift and rotate sensitive materials such as glass horizontally and vertically (180 ° ± 90 °) and pivote (90 °). The integrated battery with charge level indicator and the integrated charger (230 V) guarantee smooth transport. The flexible and expandable plug-in system with traverse inserts from the Diamond series and the colored marking of the vacuum circles enable the Gold Line VacuLifter® to be operated individually and flexibly. Thanks to the robust steel construction, the Diamond vacuum lifters are also suitable for use on construction sites. Transport rack The VacuLifter DIAMOND (every version) is placed safely on the transport frame to save space. If necessary, the transport rack is moved by forklift or pallet truck. The stable steel construction protects the individual components on the construction site. Cable remote control The cable remote control (with a cable length of 5 m) can be used as an alternative to the slide valves. The cable remote control has safety pushbuttons and is controlled by means of an electro-magnetic valve. This allows the operator to vacuum and release the VacuLifter from a distance of up to 5 m. Note: Retrofitting is not possible, so this extension is only available when purchasing a new VacuLifter DIAMOND. Radio remote control The radio remote control can be used as an alternative to the slide valves. It has a safety push button and is controlled by means of an electro-magnetic valve. This means that the operator can have the VacuLifter vacuumed and released from a greater distance. Note: Retrofitting is not possible, so this extension is only available when purchasing a new VacuLifter DIAMOND.
