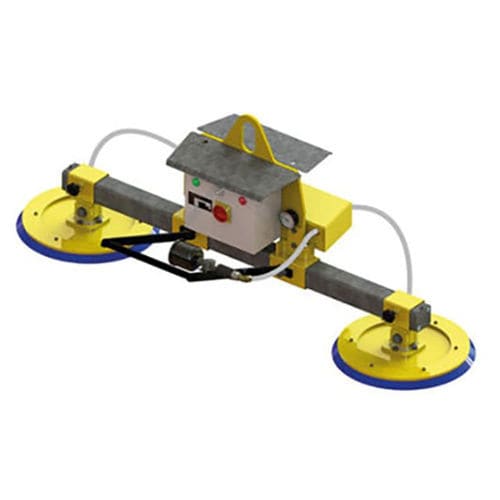

Single-girder vacuum lifting device H-2-500 P
for sheet metalhorizontalpneumatic

single-girder vacuum lifting device
single-girder vacuum lifting device
Add to favorites
Compare this product


Characteristics

Model
single-girder
Product applications
for sheet metal
Type
horizontal
Power
pneumatic
Carrying capacity

500 kg
(1,102 lb)

Number of cups

2 unit

Overall length

1,500 mm
(59.06 in)

Total width

800 mm
(31.5 in)

Weight

78 kg
(171.96 lb)

Description

The pneumatic systems of the H-2 series are suitable for the horizontal transport of a wide variety of materials and shapes, both indoors and outdoors. The system uses its full power via two suction pads that are equipped with high-quality rubber sealing rings to protect the transport loads from scratches or damage. The Blue Line VacuLifters are not just about the safety of the materials Line in the foreground, but above all the ingenious game with the forces of physics. The optical and acoustic warning system ensures that no risks arise even if the pressure drops. Thanks to flexible system configurations and lever valves, button control, simple and purpose-tailored operation is possible at any time and, like all VacuLifter®, the systems in this line are characterised by their durability and high quality. The VacuLifter® H-2-500 P is available with a wide range of optional extensions such as an interchangeable set, a transport trolley, water separator, Ergo-Flex handle or a forklift traverse, button control incl. holder, fold-up parking supports. Like all systems in the Blue-Line, this system is also optionally available with the electrical equipment in the Red-Line. Change set The interchangeable set enables different suction pads and compact truss units to be connected via a pin connector and a vacuum quick-release coupling. The suction pad can be replaced quickly and easily without having to separate the VacuLifter from the crane hook. The exchange set is available for loads up to 300 kg. For higher load capacities only available on request. Transport trolley The rollable transport trolley ensures maximum mobility.
