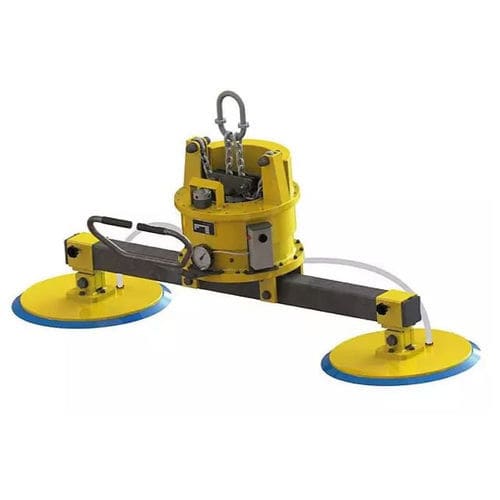

Single-girder vacuum lifting device U125-2

for aluminum platesteel sheet metalfor metal sheets

A material thickness of 2 millimeters (steel) is sufficient to lift and transport a 3 x 1.5 meter sheet metal without leaving a trace. We can help with the U125 series the energy self-sufficient Green Line access to the ton area of ​​the payloads, which can also be perfectly aligned to the individual requirements in use in this load area. Like all models of the Green Line, the U125 series is also characterised through simple, intuitive operation. For example, the crane control or the automatic switching of the vacuum when putting on and taking off guarantee smooth transport. The high-quality rubber covers of the suction pads and sealing rings ensure that even the most sensitive surfaces are not damaged by scratches - whether indoors or outdoors. Standards of all Green Line VacuLifter® Independent of energy • Standard and individual solutions • 30 year guarantee on spare parts availability • Made in Germany The VacuLifter® U125-2 is available with a wide range of optional extensions such as a transport trolley, water separator, the Ergo-Flex handle, a crossbeam for forklift use and fold-up parking supports. Change set The interchangeable set enables different suction pads and compact truss units to be connected via a pin connector and a vacuum quick-release coupling. The suction pad can be replaced quickly and easily without having to separate the VacuLifter from the crane hook. The exchange set is available for loads up to 300 kg. For higher load capacities only available on request. Transport trolley The rollable transport trolley ensures maximum mobility.
