Hydraulic fitting BAIO® F
socketflangecast iron

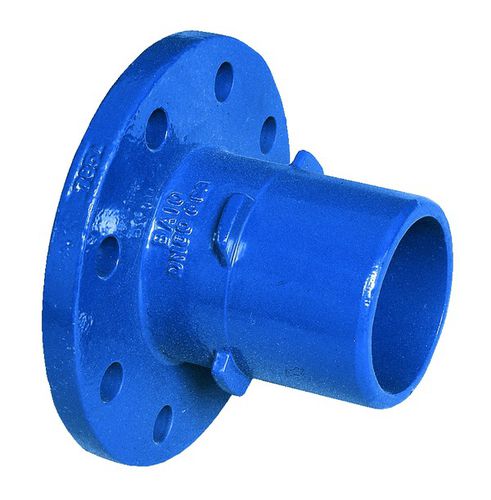

Hydraulic fitting - BAIO® F - VAG-Group - socket / flange / cast iron
Hydraulic fitting - BAIO® F - VAG-Group - socket / flange / cast iron
Hydraulic fitting - BAIO® F - VAG-Group - socket / flange / cast iron - image - 2
Add to favorites
Compare this product

Characteristics

Applications
hydraulic
Attachment
socket, flange
Material
cast iron
Other characteristics
standard, corrosion-resistant
Diameter

Min.: 80 mm
(3.15 in)

Max.: 200 mm
(7.874 in)

Operating pressure

10 bar, 16 bar
(145.04 psi, 232.06 psi)

Description

Fitting with spigot-end connection on one side and flange connection on the other for the connection of VAG BAIO®plus System components. Suitable for use in water distribution applications. Sealing system/standard: Fitting in accordance with EN 546 With spigot end connection on one side and flange end on other side acc. to EN 1092-2 Spigot end with locking cams for internal bayonet locking Pull-out proof due to positive connection and friction-locked connection Short assembly times due to easy assembly or disassembly Stress-free laying due to flexibility of inclination up to +/- 3° For connection to VAG BAIO®plus System parts
