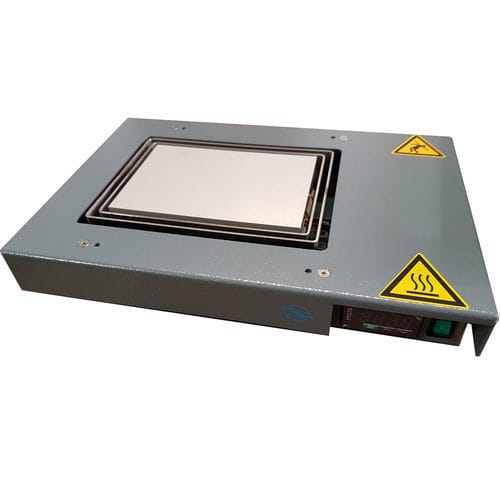

Heat treatment hot plate

solderingcompactcustom-made

Radiant heating plate Our heating plates allow the heating of Printed Circuits, mechanical parts, plastics, drying of adhesives… in complete safety. They are fitted with a thermal belt which prevents the transmission of heat to the body, allowing the operator very appreciable comfort during handling because it is possible to lean on the outer edge which remains at normal temperature. They exist in two versions: Compact with integrated regulator (operating temperature 300 ° C max) With separate control box (operating temperature 400 ° C max) For greater safety, when the plates are connected to the mains, the regulator constantly displays the temperature. The heating plates are DURAL anodized. Standard existing heating dimensions: Dim. 150x100mm - Power: 500W - Voltage: 230V Dim. 150x200mm - Power: 1500W - Voltage: 230V Dim. 150x300mm - Power: 1200W - Voltage: 230V Dim. 150x450mm - Power: 2200W - Voltage: 230V Dim. 300x200mm - Power: 2000W - Voltage: 230V Dim. 300x300mm - Power: 2700W - Voltage: 230V Dim. 300x350mm - Power: 3200W - Voltage: 230V Dim. 400x500mm - Power: 3200W - Voltage: 230V Custom dimensions possible on request. Magnetic strip holder for card Component fall protection grid Grille Protective cover Contact thermocouple + 24 × 48 display for card temperature measurement (only for separate boxes) Temperature pyrometer + box + support arm (only for separate boxes)
