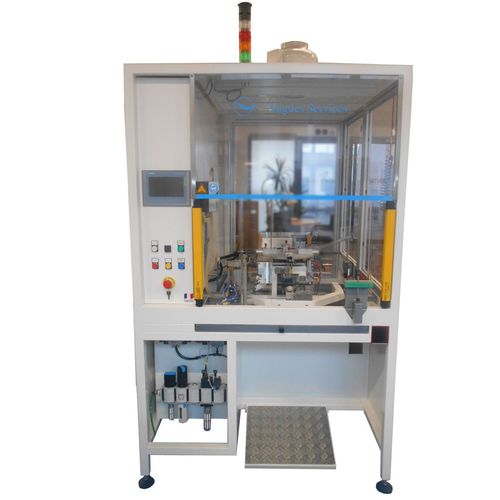

Carousel soldering machine

mini-waveautomaticrotary

• Designation: Selective Brazing Carousel • Model: Mini-wave with multipoint nozzle • Max PCB dimensions: 250 x 250 mm • Cycle time: Minimum 10 seconds depending on options • Power / Voltage: 11 kW / 400V + N + T • Empty weight / Alloy weight: 900 Kg / Between 30 and 50 Kg Brazing Carousel all pneumatic for mono-product Where then all electric for multiproducts comprising: Loading / Unloading zone with optical fibers for detection of arms and presence of parts Fluxing Zone Preheating Zone (optional) Mini Wave Soldering Zone Intangible barriers Rotary table with arm supports Bottle cage for flux Cleanliness bins Electrical cabinet HMI console with touch screen Color tag Dimensions: Length 2050 mm x width 2000 mm x Height 2340 mm (dimensions may vary slightly depending on the configuration of the station). Loading / Unloading area Station made up of an optical fiber for arm detection, 1 cell for part detection and their amplifiers. A barcode reader can be added (on supply of specifications) for launch by series or by single part. By Cup crucible: Fluxing crucible with bucket controlled by a pneumatic cylinder or electric cylinder Custom-made bucket to be adapted to your parts Flow presence sensor Pneumatic or electric raising and lowering system Intermediate tank for flow with 3 level sensors Single bottle holder for the flow (or double if alcohol is needed) By "DropJet" type spray nozzle Fluxing station with electric X / Y table 2 linear axes 1 automatic spray nozzle Ø4 to 6 mm impact 1 stainless steel pressure pot - 5 liter MDC stainless steel - 0/7
