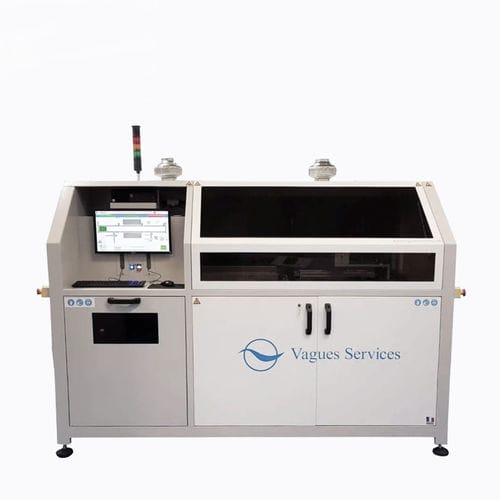

Wave soldering machine SSW-R500

automaticfor PCB

WAVES SERVICES is once again illustrated in the design and manufacture of new selective soldering equipment for electronic boards, maximum circuit dimension: 500 x 500 mm. A machine concept that offers remarkable performance, stability and exceptional repeatability, ideal for all production requirements on double reflow circuits, depending on their design, where the transition to traditional wave soldering is not necessary for certain components. Empty weight: About 1.7 Ton Installed power: 20 kW Voltage: Tri 400 V + N + T Sound level: <70 DB Overall dimensions: Length 2600 x width 1600 x Height 2300 mm Mechanically welded frame Offset link chain conveyor Referencing on the fluxer and wave head Conveyor width, automatically adjustable Maximum circuit dimension: 500 x 500 mm Drop jet type spray fluxer Point by point or online programming 5 Liter pressurized container Speed: 0 to 200 mm / s Lower shortwave preheating Upper shortwave preheating Temperature control by probe and pyrometer Setpoint temperature: 0 to 500 ° C Mini soldering wave with mechanical or electromagnetic pump with wettable nozzle Directional nozzle with pot rotation (optional)
