Static mixer HT

continuousfor liquidsconstruction

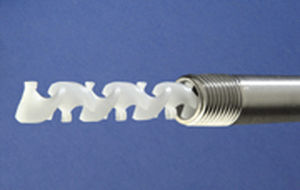

The HT helical static mixer pioneered the inline motionless mixing industry over 40 years. It is a cost effective static mixer design with moderate mixing performance capabilities. It is most suitable for use in small diameter turbulent flow and laminar flow applications where the mixing task is simple and where its characteristic features of low pressure drop and open geometric structure are of value in the specific application. For difficult applications, the high performance GX static mixer is recommended for laminar flow applications and the high performance GV static mixer is recommended for turbulent flow applications. The Helical static mixer is available in metal and plastic construction in a wide variety of configurations and sizes. Helical Static Mixing Elements only (metal) Helical mixing element assemblies in metal construction are available in 316L S/S to fit virtually any pipe size. Standard sizes are made to fit Sch. 40 pipe, however mixing elements can be made to fit most pipe diameters. Sizes range from 0.25” – 12” diameter. Threaded Pipe Ends Helical Static Mixer (metal) Helical static mixing units with threaded pipe end connections are available in 1/8” – 2” diameter Sch. 40 pipe sizes. Non-Standard pipe and tubing sizes are available upon request. Flanged Pipe Ends Helical Static Mixer (metal) Helical static mixing units in flanged housings are available in 1/8” – 12” diameter Sch. 40 pipe sizes. Non-Standard pipe and tubing sizes are available upon request. Sanitary Helical Static Mixer (metal) Sanitary design helical static mixing units are available in 1” – 3-1/2” tubing sizes.
