Galvanic isolator TSU400 series

galvanic isolator
galvanic isolator
Add to favorites
Compare this product


Electrical characteristics

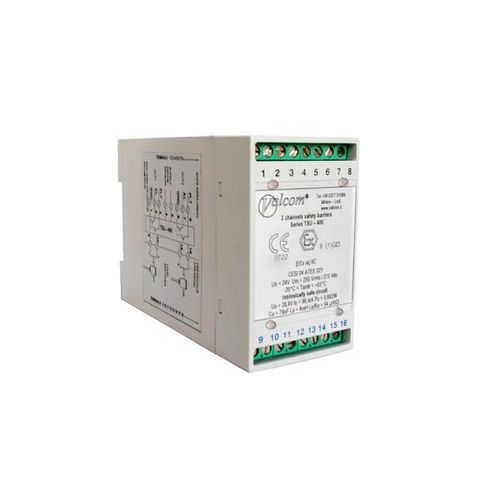

The galvanically isolated safety barriers TSU400 are valid alternative to passive barriers because they don’t need a high integrity I.S. ground, being the isolation between the safe area and the hazardous area guaranteed by a transformer. TSU400 series barriers have an intrinsic voltage regulation of the supply and are designed for connection to ON-OFF sensors having a mA output so that they permit to interface 5/13 mA two wire switching instruments also giving a relay output. They are especially suitable for ships applications and for hazardous areas installations being certified [EEx ia] IIC. Great advantages are offered by the use of TSU400 series barriers interfaced with Valcom® ultrasonic level switches ASL400 series.
