Rack-mount chassis AMSY-6

compactruggedindustrial

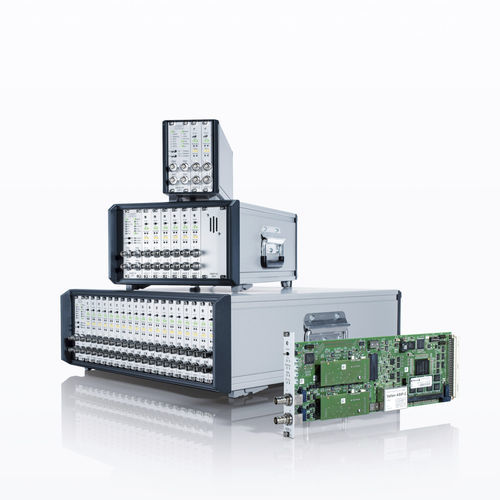

The AMSY-6 is available in four rugged metal chassis models which accommodates up to 4, 12, 38 or 42 channels, respectively. The AE system is controlled by an external PC that can easily be disconnected, e.g., for offline analysis in the hotel room. Desktop PCs, laptops or industrial PCs can be used as well. Connectivity - High-speed USB3.0 interface for easy connection with any PC Investment Protection - Compatible with ASIP-2 Correlation with AE - 4 (optional 8) parametric inputs for measuring pressure, strain, displacement, etc. For any Material - Test pulse generator is programmable up to 400 V to overcome strong wave attenuation Audio Warning - Audio unit which makes incoming AE signals audible Real Time Indicators - LEDs for displaying the most important system status information Fast Response by Fingertip - Switches for manually disabling data recording Worldwide Usage - Power supply 100-240 V AC, 50-60 Hz, or 24 V DC Ease of Stack Ability - Up to eight chassis can be connected into one large system with up to 254 channels Rack Mountable Versions - Available
