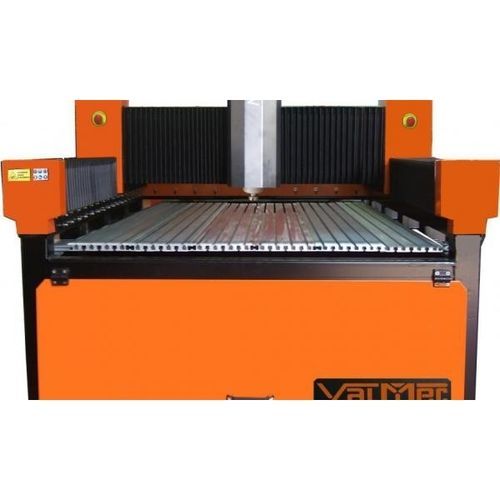

Spindle engraving machine Iron

marblethree-axisCNC

The IRON is a numerically controlled pantograph with 3 interpolated axes, built with anti-corrosion materials to ensure maximum resistance over time. All movements are carried out by means of guides and ball screws of large cross-section, ensuring maximum precision.The IRON has a powerful and intuitive software to meet the specific needs of funeral art processing. They are available in different versions: IRON - IRON plus and IRON EXTRA to meet all customer needs. the IRON combines high quality with low investment. Manual tool change Ground aluminum worktop for the Full version • Digital servo brushless motors and drives • Hiwin ball screws and guides on XYZ • Z Height: 200mm / optional 290mm • Table dimensions: 900x720 • Accuracy: 0.01 • Repeatability: 0.01 • Language: g-code • Software compatible: windows Seven / 10 • Voltage: 220/380 • USB port connection with the well-known Colibrì program. • Automatic lubrication of screws and guides • New: possibility of having automatic tool change • Tool length feeler • Connections with PC - Standard USB port • Connections with PC - Optional Ethernet
