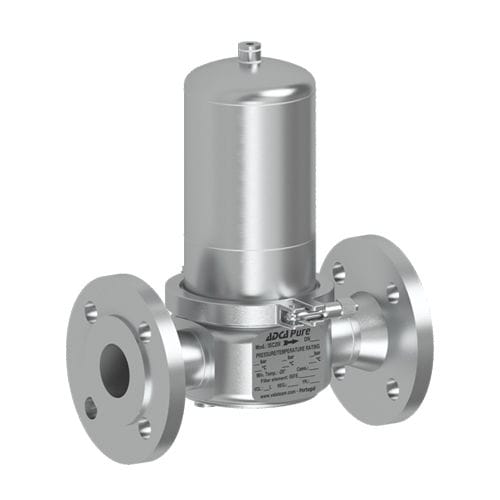

Gas filter ISC20 series

compressed airfor steamcartridge

The ISC20i and ISC20i2 high efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves, with 1/4" to 3" being joined by a sanitary clamp ferrule according to DIN 32676 Series A. Whereas 4" to 6" are joined by bolts and nuts. All sizes include plugged drain and vent connections. The replaceable filter elements are made of sintered austenitic stainless steel and available with 1, 5 or 25 micron absolute rating. MAIN FEATURES Several retention rates available. Good durability against aggressive gases. Porosity level above 50% to ensure high particle and dirt load capacity as well as high flow rates at a low differential pressure. Regeneration by ultrasonic cleaning. STANDARD SURFACE FINISH Internal wetted parts upstream of filter elements: ≤ 1,6 µm Ra for model ISC20i. As casted for model ISC20i2. Internal wetted parts downstream of filter elements: ≤ 0,76 µm Ra – SF3, for all models. External: Satin bead blast finish. As casted body for model ISC20i2. Other surface conditions see TIS.GIA – General information ADCAPure. Female threaded ISO 7 Rp or NPT. Tube weld (TW). Flanged EN 1092-1 PN 16. Flanged ASME B16.5 Class 150. Others on request. Horizontal installation with the drain connection pointing downwards. See IMI – Installation and maintenance instructions.
