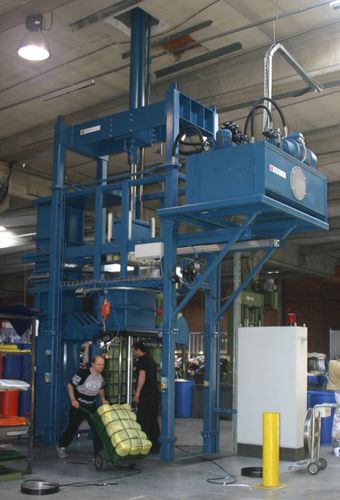

This hydraulic baling press is designed especially for baling small bales of used clothing, with dimensions that fit perfectly in maritime containers. The press is partly situated in a pit. It is a high-speed press with feeding through NDG carts that are emptied automatically in the press and it can be operated by 1 or 2 operators. A capacity of up to 30 bales/ hour can be achieved, depending on the model, the # of operators and the use of options.
The NDG carts can be used directly in the sorting area for filling folded or pieced goods. An optional weighing and filling system can be added to easily fill the carts with crush-packed goods.
A strap guide system is included for fast strapping
The NDG40 can be extended with an automatic cart feeding system and an automatic strapping system to increase the baling capacity and/or reduce the number of operators.
Capacity: 30 bales/ h with 2 operators
Filling: Automatically through NDG carts
Pressing force: 40 tons
Motor power: 37kW
Machine weight: 12 tons
Box size (LxWxH) : 750 x 450 x 1500 mm
Bale size (LxWxH) : 765 x 465 x 250-600 mm
Bale weight: 45 to 100 kg
# straps: 4 + 2
