Three-phase drum motor XD215 CROSS DRIVE, XD160 CROSS DRIVE
drivenfor belt conveyorsfor heavy loads

three-phase drum motor
three-phase drum motor
Add to favorites
Compare this product


Characteristics

Motor type
three-phase
Drive mechanism
driven
Options
for belt conveyors, for heavy loads, for conveyors, for light-duty applications
Diameter

6.5 in, 8.5 in

Velocity of the shell

Min.: 12 ft/s (3.66 m/s)

Max.: 410 ft/s (124.97 m/s)

Description

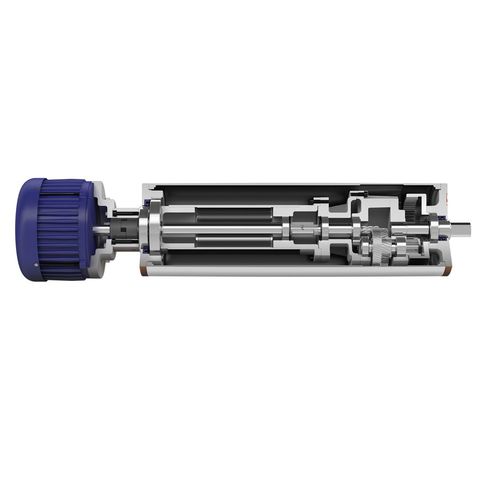

The Cross Drive is a conveyor head pulley with all vital components such as gears, bearings and seals permanently lubricated within the drum shell. The electric motor is mounted externally on the faceplate of the cross drive, which has been designed to accept any standard C flange mount electric motor or the industry exclusive PANCAKE design motor, that will reduce the overall motor lengths by up to 50%. Installation and removal of the electric motor is quick and easy requiring only four bolts. The Van der Graaf Pancake motor is an industry exclusive, with overall motor lengths reduced by up to 50%. The unique design of the pancake motor is based on the principle of space savings. By reducing the overall length of the motor by up to 50%, the pancake provides an increase in space savings parallel to no other motor. The space reduction equals savings in real estate, operator safety and maintenance requirements. BENEFITS - 96% Mechanical Efficiency reduces energy costs - Immediate access to motor - No maintenance reduces operating costs - Compact design increases operator safety

Catalogs

Crossdrive
Crossdrive
2 Pages
