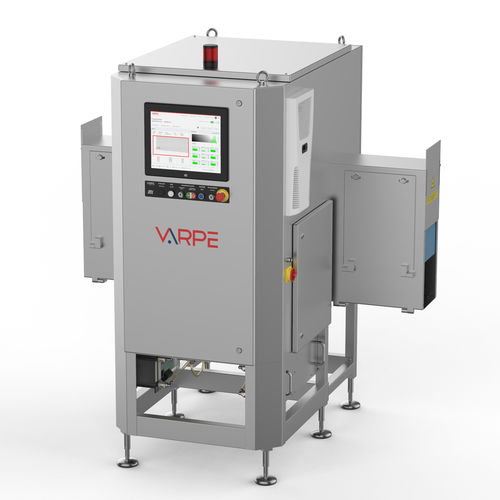

X-ray inspection system IRIX DDL SIDE PLUS
double-beammeasurementfor the pharmaceutical industry

X-ray inspection system
X-ray inspection system
Add to favorites
Compare this product


X-ray, double-beam
for the pharmaceutical industry, for the beverage industry
Product applications
for cans


The IRIX DDL SIDE PLUS X-ray inspection system includes advanced X-ray technology that achieves exceptional levels of detection of ferric and non-ferric material, stainless steel, glass, calcified bones, spines and stones. This equipment includes double side shot, bottom-up or top-down. Bottom-up side beam uses two generators with different angles of attack. It is especially suitable for cans that contain dense products. Top-down side beam is used when inspection is to be performed on glass jars, such as liquid bottles or similar. In addition, the IRIX DDL SIDE PLUS simultaneously checks for damaged products, breakage, mass measurement with estimated weight, and item count within the product. This system complies with the international safety standards governing ionizing radiation emissions. Production : Up to 1200 p/min. Memory formats Up to 900 products Screen LCD-LED color touch screen 17” Protection IP54 / P66 (optional) Motor Asynchronous and / or Servo Motor Working temperature 0-40 ºC Manufacturing material Stainless Steel AISI 304 / AISI 316 (optional) Maximum product dimensions According to the needs Working height 800-1200 mm Resolution 0,8 a 0,4 mm/pix. Speed Up to 200 m/min High-voltage source Max. 80 kV - Max. 5 mA - Max. 600 W of high durability
