Lubrication system strainer

lubrication system strainer
lubrication system strainer
lubrication system strainer
lubrication system strainer
Add to favorites
Compare this product


Characteristics

Options
for lubrication systems

Description

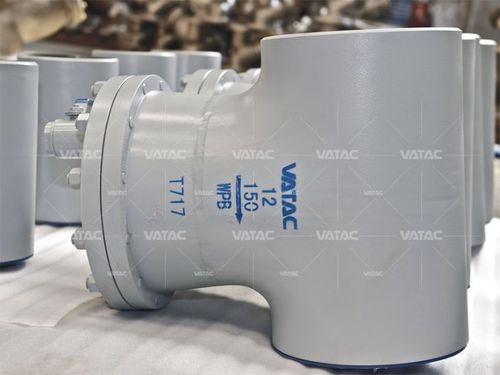

Vatac Fabricated T Strainer were initially developed for the petrochemical market. With continuous success they now become a standard product available off the shelf in most sizes. The unique quick-opening closure and venting allows the safe fashion, to remove the basket for cleaning. An o-ring seal provides positive sealing of the cover. The Vatac T Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fiber, pharmaceutical and food industry etc. » Manufactured under ISO 9001:2008 Management System, with CE PED & API 6D Certified » Size Ranges: 1 1/2” through 24” » Pressure Ratings: ANSI #150 to 2500, PN16~PN420 » Standards compliance: ASME B16.34, DIN 3202, ASME B16.10, MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598 or equivalents » Materials: A234 WPB, SS304, SS316, SS304L, SS316L and etc. » Ends Connections: Flanged(FF, RF, RTJ), Welded Ends and Screwed to international standards » Screen: Stainless Steel, Gr. 304 or 316 » Quick open or with handwheel » Threaded Drain Plug Device
