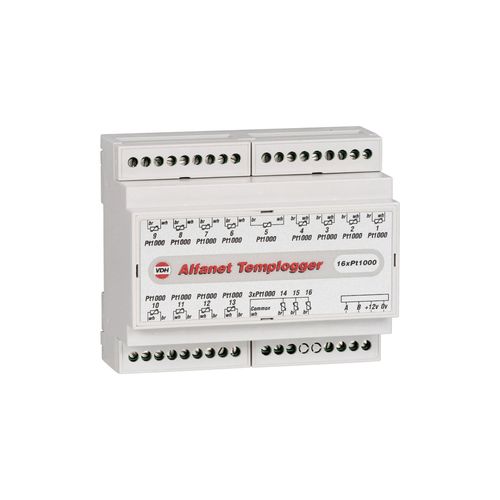

Temperature logger Alfanet

without display

The ALFANET TEMPLOGGER is a module for logging of 16 Pt1000 2-wire sensors. It is possible to connect 16 ALFANET TEMPLOGGERS on one Alfanet system. This means that it is possible to log a maximum of 16×16=256 sensors. The adjustments can be made through the Alfanet or VASP PC programm. Sensors can be switch on and off and for each temperature sensor a minimum and a maximum alarm setpoint can be programmed, including a delay time for each alarm. The alarms will activate the alarm relays from the PC interface. The Alfanet Templogger is available with the following ranges: 16x -50/+50°C 16x -100/+50°C 16x 0/+100°C 8x -50/+50°C + 8x -100/+50°C The Alfanet Templogger is supplied with 12Vdc. A special suppy module can be delivered. Technical specifications Housing: Grijs ABS Kunststof Dimensions: 106 x 90 x 58 mm (bhd) Front: Polyester Front connection: Op schroefklemmen aan zijkant Power input: 12 Vdc (Max. 45 mA) Measure range: -100/+50°C Sensor: SM 8000 (PT-1000, 2-leider sensor, volgens DIN/IEC 751), niet meegeleverd Accuracy: ± 0.5% van het bereik Network: RS-485 Netwerk Alfanet Housing: Din-rail
