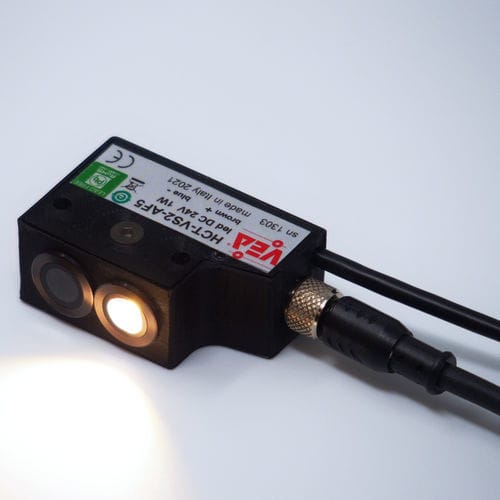

Digital camera HCT-VS2-AF5area scanindustrialmachine vision
Add to favorites
Compare this product
Characteristics
- Technology
- digital, area scan
- Applications
- industrial, machine vision, for scientific applications, for quality control, education, for computer vision
- Function
- monitoring, detection, inspection, scientific vision
- Spectrum
- full-color, monochrome, B&W
- Sensor
- CMOS
- Interface
- USB 2.0
- Resolution level
- 2592 x 1944
- Resolution
- 5 Mpx
- Other characteristics
- with rolling shutter, IP54, ultra-lightweight, autofocus, miniature, compact, megapixel, high-performance, low-light, stand-alone, wide-viewing angle, with microphone, rugged, ultra-compact, programmable
Description
Industrial camera USB 2.0 compact 46 x 31 x 18 mm, economic.
Mounting by means of M3 screws 25.4 mm pitch IP54 protection.
5 Mpixel colour; resolution programmable from 320 x 240 to 2592 x 1944 pixels.
Speed from 3 to 120 fps.
LED illuminator adjustable intensity integrated.
Software-controllable focus with function autofocus.
Catalogs
hct-vs2-af5-datasheet-en
2 Pages
