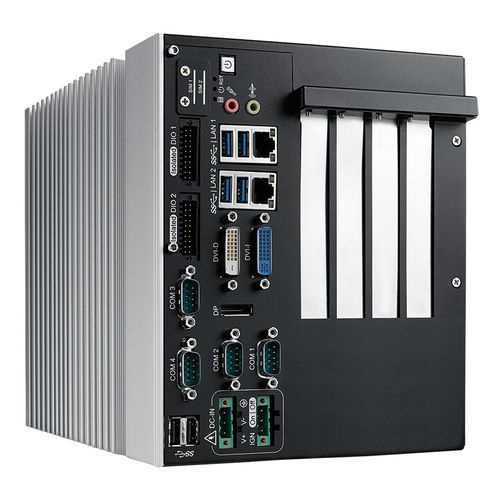

Embedded computer RCS-9440

all-in-onemobileIntel® Skylake Processor

LGA 1151 Socket supports Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 Processor (Skylake-S) Onboard DVI-I, DVI-D and DisplayPort display interface, up to 3 independent HD displays 2 DDR4 2133MHz Memory, up to 32GB Fanless, -25°C to 75°C Operating Temperature 6V to 36V DC-in with 80V Surge Protection Configurable Ignition Power Control 2 Independnet Gigabit LAN supports iAMT 11.0 3 SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS 4 2.5" SSD/ HDD support software RAID 0, 1, 5, 10 Front-access : 2 SIM, 1 CFast, 6 USB 3.0, 4 COM 1 PCIe x8, 3 PCIe x4 7 USB 3.0, 4 COM, 3 Mini PCIe 32 Isolated DIO Workstation-grade 7th Generation Intel® Xeon®/Core™ i7/i5/i3, fanless -40°C to 75°C operating temperature, all-in-one integrated features, multiple I/O connection, 4/2 SSD Tray, 3 SIM sockets for outstanding mobile availability, 4/2 multiple PCI/PCIe expansion, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and trusted reliability, Vecow RCS-9000 Series Fanless Robust Computing System makes versatile expansions possible in Machine Vision, Factory Automation, Robot Control, Automated Optical Inspection (AOI), Machine Automation, Industry 4.0 and any high-performance IoT applications.
