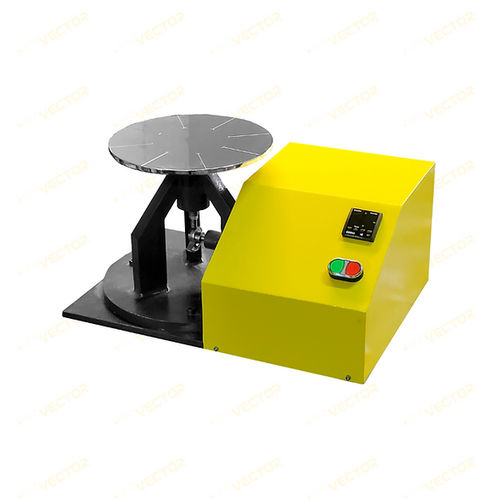

Consistency testing device

automaticmanualfor cement and mortar

With Manual and Automatic Options It is used to determine the consistency of cement, lime and mortar. The drip rate is adjusted by the user by turning the handwheel manually. The spreading table is supplied with a bronze spreading mold and a Ø40x200 mm bronze mallet weighing 250 gr. In the EN model, the 300 mm diameter table, a truncated cone with a basic diameter of 100 mm, the 70 mm diameter top face is made of stainless steel, and the 60 mm high die is made of bronze. In the ASTM model, the 100 mm base diameter, 70 mm top face diameter and 50 mm height table with 254 mm diameter are made of truncated cone shaped bronze. In motorized models, mechanical fittings and motor speed reducer are used to ensure that the flow table is within the number and time frame according to the standard. The device stops automatically when the number of drops reaches the number shown on the revolution counter. In the EN version of the flow table, the 300 mm diameter table is made of a truncated cone with a basic diameter of 100 mm, the 70 mm diameter top face is made of stainless steel, and the 60 mm high die is made of brass. In the ASTM model, the 100 mm base diameter, 70 mm top face diameter and 50 mm height table with 254 mm diameter are made of truncated cone shaped brass. Standards ASTM C230 TS EN 459-2, 1015-3
