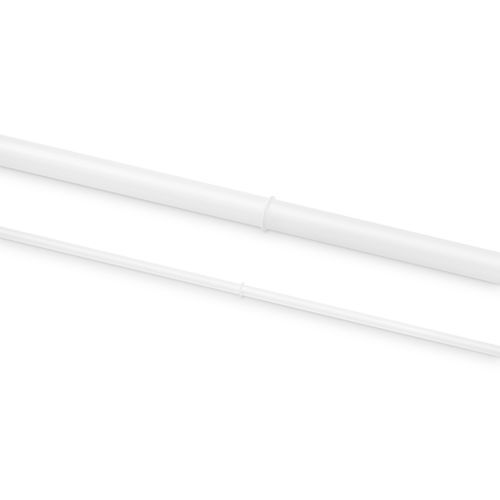

Chemical product tube VENABIO® Flex
thermoplasticelastomerfor pharmaceutical applications

Chemical product tube - VENABIO® Flex - Venair - thermoplastic / elastomer / for pharmaceutical applications
Chemical product tube - VENABIO® Flex - Venair - thermoplastic / elastomer / for pharmaceutical applications
Chemical product tube - VENABIO® Flex - Venair - thermoplastic / elastomer / for pharmaceutical applications - image - 2
Add to favorites
Compare this product

Characteristics

Use
for chemical products
Material
thermoplastic, elastomer
Applications
for pharmaceutical applications, for heating, for welding
Inner diameter

Max.: 12.7 mm
(0.5 in)

Min.: 3.2 mm
(0.126 in)

Outer diameter

Max.: 19.1 mm
(0.752 in)

Min.: 6.5 mm
(0.256 in)

Pressure

Max.: 2.3 bar
(33.359 psi)

Min.: 1.2 bar
(17.405 psi)

Temperature

Max.: 120 °C
(248 °F)

Min.: -30 °C
(-22 °F)

Delivered length

25'00" , 50'00"
(7.62 m, 15.24 m)

Description

This product satisfies the need for a heat sealable and weldable biopharmaceutical tubing. It provides disconnection and re-connection capabilities through a cuttable seal and aseptic welding. Applications This product satisfies the need for a heat sealable and weldable biopharmaceutical tubing. It provides disconnection and re-connection capabilities through a cuttable seal and aseptic welding. It is important to mention that a thermoplastic is heat sensitive, so dry heat, SIP and autoclave sterilization cycles will shorten its life considerably, therefore it should only be used when the application is single use. Properties Sterilization - Compatible with Gamma, e-Beam and X-Ray. Hardness - 70 sHa.
