IP55 fan VABaxialextractionexhaust
Add to favorites
Compare this product
Characteristics
- Type
- IP55
- Configuration
- axial
- Function
- extraction, exhaust
- Supply voltage
- AC
- Air flow
Max.: 45,000 m³/h
(1,589,160.002 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Diameter
Max.: 1,000 mm
(39.37 in)Min.: 500 mm
(19.685 in)
Description

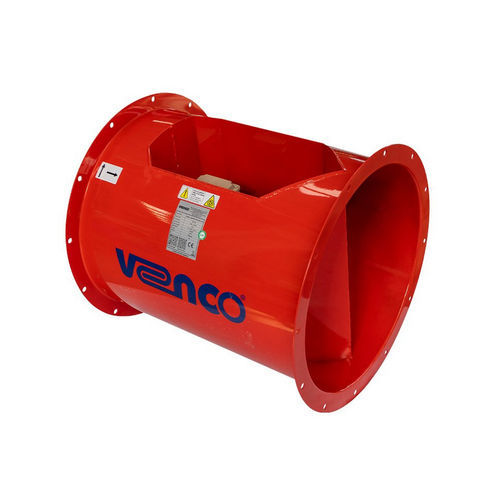

VENCO VAB Series Bifurcated Axial Fans are used for exhausting smoke and gases. Compact design that motor is outside of airstream, protects the motor. The fans are suitable for industrial and commercial applications.
- 4 different diameters in the range of Ø500-1000 mm
- Air flow up to 45000 m³/h
- The motor is outside of the air steam
- BS790 hot dip galvanized sheet metal fan casing
- Aluminum and aerodynamic profiled impellers allow high efficiency and low noise.
- Electrical motors with IP55 and maintenance-free bearings
- The compact design allows easy and quick connection to ducts
- Continuous operating temperature is 120°C
- Electrostatic paint option
Catalogs
VAB Bifurcated Fans
2 Pages
