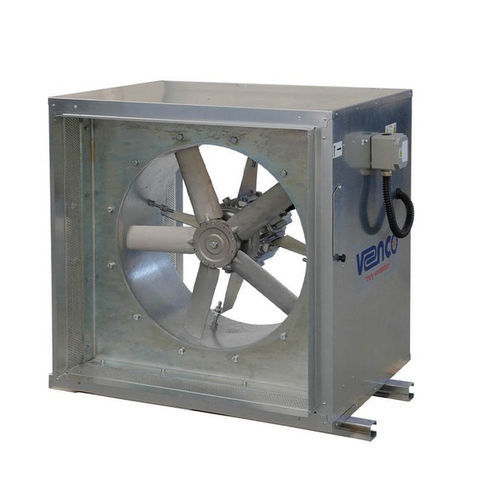

Axial fan VAX-H

industrialcommercialwith adjustable blades

VENCO VAX-H Series Axial Fans are fans that can be used in car park projects in addition to general ventilation applications. They are suitable for industrial and commercial applications. The best matching fan is supplied in the wide range by selecting several blade- hub combinations and adjustable blade angles. All equipment is easily accessible by the service door. Double skinned casing covered by 50mm rock wool provides acoustic and thermal insulation.

• Full size from Ø400mm to Ø1400mm diameter
• Hot dip galvanized sheet metal fan casing and galvanized sheet outer casing
• Cast aluminum adjustable blade angle impellers
• Aerodynamic profiled impellers allow high efficiency and low noise
• Die cast aluminum alloy fan hubs
• Optimum capacity obtained by different blade-hub combinations besides adjustable blade angels
• Perfored internal surface with 50mm rockwool insulation
• IP 67 terminal box is placed out of the casing
• Electrical motors with IP 55 and F class insulation
• 230V, 1 phase, 50 Hz and 380V, 3 phase, 50 Hz
• Operating temperature between -20°C and 50°C
• Electrostatic paint option
