Insulation bushing PGS

flangesilicone rubberfor SF6

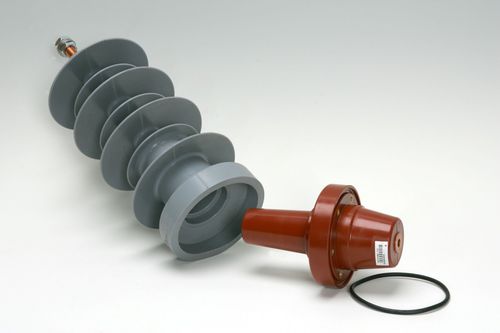

Bushing for outdoor applications using SF6 insulating systems. It is composed of two parts: A, red epoxy bushing constitutes the core of the insulator with solid mechanical strength and suitable for SF6 use. B, silicone rubber cover granting great insulating performances in highly polluted environments. Resin bushing “A” can be used alone thanks to its EN 50181 connection type C. It has to be connected with the silicon cover “B” or with cable termination before putting into operation the electrical equipment. Resin bushing is supplied with an EPDM O-ring gasket and plastic safety cap for C connection cone, while B part is supplied with a small bag of silicone grease and nuts/washers set made of nickel-plated copper for the outdoor cable connection. It has to be fixed to the tank through six OT58 brass fittings. APPLICATIONS Indoor and Outdoor, SF6 insulated devices. TECHNICAL DATA Highest voltage for equipment (Um): 24kV – 36kV Rated current (Ir): 400A – 630A
