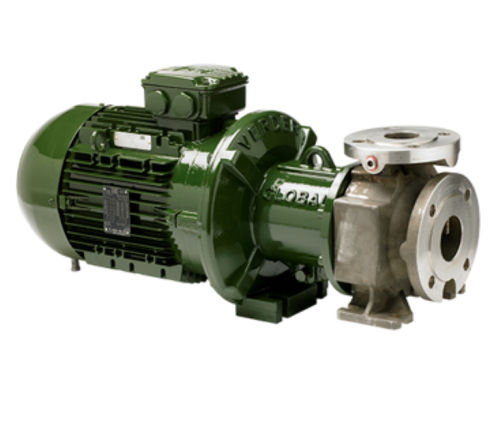

slurry pump / oil / electric / self-priming
Global Mark 2



  • Media:

    slurry, oil

  • Operation:


  • Priming:


  • Type:


  • Domain:


  • Other characteristics:

    mechanical, ATEX, circulation

  • Flow:

    200 m³/h (7,062.9333 ft³/h)

  • Pressure:

    16 bar (232.06 psi)

  • Head:

    100 m (328'01")


The Mark 2 pump ranges offers medium to high flow and head duties and are excellent in high and low temperature applications.

At the heart of the pump is the bearing system which has a ’floating design’ to allow for greater resistance to changes in temperature and pressure. The range is ISO2858 and ATEX compliant. Key applications include thermal oil circulation, power stations, condesate and refineries.

The mag drive working principle offers 100% leak-free operation as there are no mechanical seals. The life cycle cost savings are significant when comparing to a shaft sealed pump equivalent due to the low number of spares, no clean-up costs and unplanned line downtime.

The pump design incorporates the best quality components such as investment cast pump ends, samarium cobalt magnets, silicon carbide bearing systems and market leading motors.
