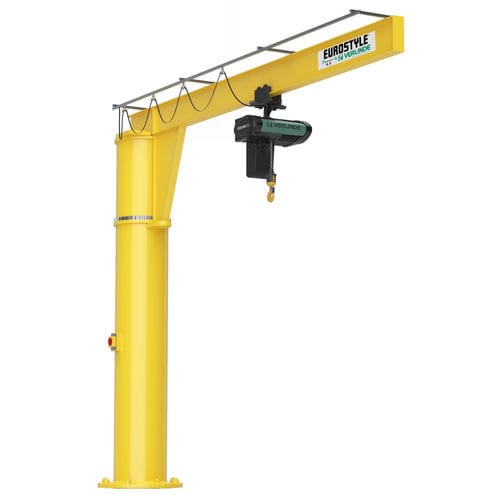

Pillar jib crane EUROSTYLE VF series
360° rotating

pillar jib crane
pillar jib crane
Add to favorites
Compare this product


Characteristics

Type
pillar
Other characteristics
360° rotating
Load

Min.: 125 kg (276 lb)

Max.: 10,000 kg (22,046 lb)

Lift height

3 m (9'10")

Boom length

Min.: 2 m (6'06")

Max.: 12 m (39'04")

Description

Range of manual and motorized jib cranes Handling facilities made-to-measure for each workstation is indispensable and enables production halts caused by using the overhead travelling crane in service in the workshop to be avoided. VERLINDE offers you a wide choice of rugged, eyepleasing designs and high performance jib cranes equipped with the full range of EUROCHAIN VR, EUROBLOC VT or EUROLIFT BH hoists. Whether wall-mounted or on mast posts, jib cranes are rational and low-cost handling facilities the installation of which does not require any modifications to the building. They are compact, whilst at the same time enabling loads to be moved in every direction. They can be used in every sector of industry : foundry, boilerplating, mechanical engineering, papermaking, etc. They are the ideal companion for overhead travelling cranes covering the workshop as a whole. They increase the autonomy and efficiency of every workstation. Technical Characteristics • - All-steel design in compliance with DIN 15018 standards • - IPE section or EUROSYSTEM hollow section jib arm, withstanding torsional stresses • - Manual trolley with underhung hoisting tackle delivered as standard equipment on hollow section boom • - Service temperature: -10° to +40° C • - Presentation : shot-peened frame, primer coat and glossy yellow topcoat • - 24-months warranty on the paintwork in accordance with Re3 check procedure • - IP54 switchgear Product Range Column mounted 360° slewable Manual ou motorized rotation VFP-VFM IPE section boom Motorized version : VFM
