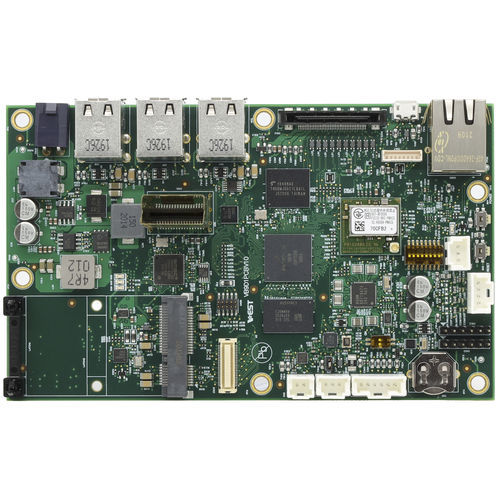

Unleash the full potential of the NXP i.MX8M Mini, featuring an advanced implementation of a Quad Arm® Cortex®-A53 core, which operates at a top clock speed of 1.8 GHz. This provides rich multimedia functionality for general purpose Human-Machine-Interface (HMI) solutions enabling touchy, voice, graphics, video.
Specifications
i.MX8M Mini | 4x Cortex®-A53 @ 1.8GHz, Cortex®-M4 @ 400MHz
GC Nano Ultra for 3D Acceleration | GC 320 for 2D Acceleration
2GB (up to 8GB) 32-bit LPDDR4-3000
8GB (up to 128GB) eMMC5.1
Yocto Linux, Ubuntu and Android
1080p60, H.264, VP8
1080p60, H.265/4, VP9, VP8
Support up to1080p60 Display through MIPI DSI
On Board Dual Band Wi-Fi / Bluetooth Module with 1x Antenna (Optional)
USB 2.0 OTG Mirco, Type B | 6x USB 2.0 Host, Type A
RS485 (default) or RS232 | CAN-1x 2mm Pitch 3 Pin Header
1x Gigabit Ethernet with AVB, IEEE 1588, EEE
Debug-2x UART Header, 2.54mm Pitch 6 Pin Header | JTAG-1.27mm Pitch 2x 5 Pin Header
12-24VDC, 2 Pin 4.2mm Pitch Mini Fit JR Header
147mm x 89mm
Commercial | Industrial (Optional)
