Cable drum lifter KLT 31

Product
KLT 31
Code: 317318

Description

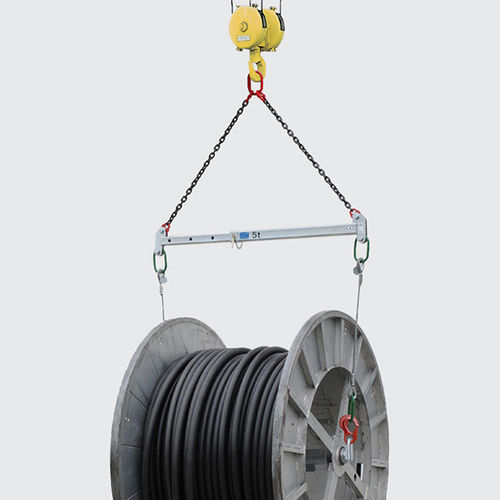

Lifting beam for safe lifting and transporting of cable drums. Delivered with chain suspension and two rope slings; compatible with drums listed in the table below. Other dimensions available on short notice.

Technical details
Shaft length (mm max.): 2450
Width min. (mm): 1200
Width max. (mm): 2000
Drum Ø (mm): 3000
Drum width (mm): 1200-1800
Load capacity: 3T
Weight: 37 kg

Characteristics / technical data

• Product name: KLT 31
• Product code: 317318
• Shaft length (mm max.): 2450
• Width min. (mm): 1200
• Width max. (mm): 2000
• Drum Ø (mm): 3000
• Drum width (mm): 1200-1800
• Load capacity: 3T
• Weight: 37 kg
