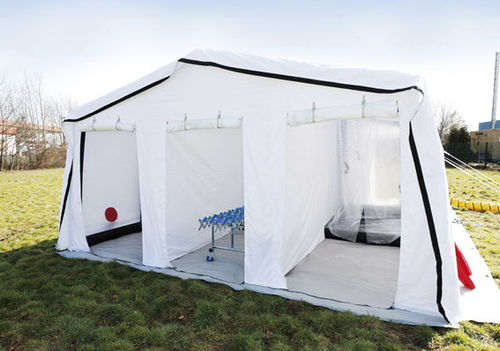

Mobile tent PZ 40 3 L

retractableinflatable

Overview:
The PZ 40 3 L is a three-line decontamination shelter created by two longitudinal partitions. It enables rapid decontamination of multiple casualties: the central lane (1.85 m) accommodates lying injured, while the two outer lanes (1.62 m each) serve as separate shower lanes. Each line is subdivided into undressing, shower and dressing areas.

Basic equipment:

• Tent frame with tension ropes
• Cover awning
• 2 removable entry awnings, each with 3 doors
• 3 windows in each entry awning
• Detachable, obstacle-free floor
• 2 removable longitudinal partition walls to create 3 sections
• 3 shower units
• 3 semi-transparent, removable shower curtains
• 12 handheld nozzles (4 per shower unit)
• Collection basin spanning the full width of the tent

Standard colours:

• White
• Gold
• Orange
• Red
• Forest Green
• Royal Blue
• Silver
• Black

Technical specifications:

• Product number: 1520035500
• Weight: 204 kg
• Air requirement at working pressure [l]: 6863
• Outer size: 800 x 550 x 310 cm / 314.96 x 216.54 x 122.05 in
• Packing dimensions: 110 x 95 x 100 cm / 43.31 x 37.40 x 39.37 in
• Test pressure: 0.65 bar / 9.43 psi
• Drip tray [l]: 2610
• Inner size: 800 x 514 x 290 cm / 314.96 x 202.36 x 114.17 in
• Operating pressure: 0.5 bar / 7.25 psi
• Set up time [sec]: 300

Applications:

• Epidemics and mass casualty incidents
• Pre-hospital decontamination of patients
• ABC-protection at industrial or reactor accidents, terrorist incidents or wartime scenarios

Logistics & options:

• Separate water supply for individual control of flow and temperature
• Colour-coded connections on the tarpaulin (blue: water, red: heating/power, green: compressed air)
• Continuous drip tray in the shower area to prevent liquid entering other sections
• Can be coupled with PZ 30 or PZ 40 universal tents to extend capacity or function
• Delivered with accessory bag (pegs and repair material) and practical packing bag
• Optional: accordion roller conveyor and corresponding spine boards
