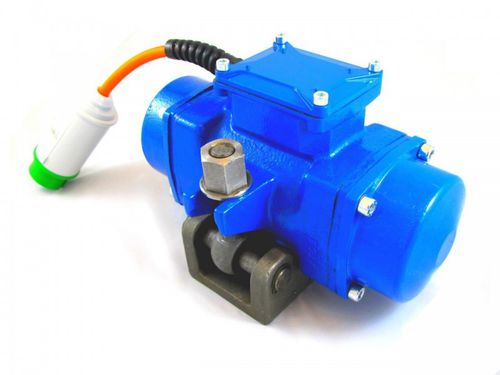

Electric vibrator EAHF seriesexternalfor concretehigh-frequency
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- external
- Product applications
- for concrete
- Other characteristics
- high-frequency
- Rotational speed
Max.: 6,000 rpm
(37,699.1 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 2,000 W
(2.719 hp)Min.: 530 W
(0.721 hp)
Description
42 V FIXED FREQUENCY 200 Hz
Frequency converter required
Suitable for external vibration of formwork and concrete manufactures.
ON REQUEST :
Cable (5 m cable with CEE 17 plug)
Bracket mount FRB2 (small type) (PM)
Bracket mount FRB4 (large type) (GM)
400 V ADJUSTABLE FREQUENCY FROM 0 TO 100 Hz
Frequency variator required.
NB : Whatever frequency is used, centrifugal force must not exceed the values below.
ON REQUEST :
Cable (5 m cable with CEE17 plug)
Bracket mount FRB2 (small type)
Bracket mount FRB4 (large type)
