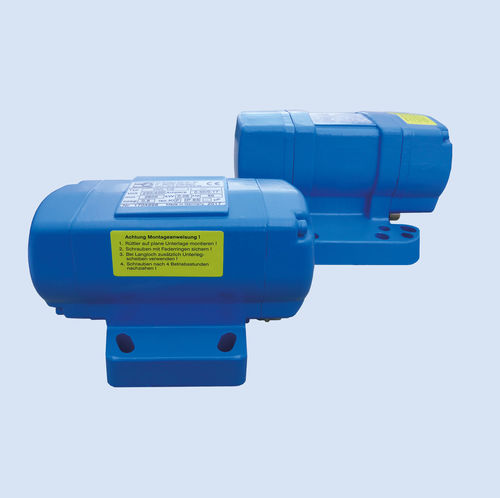

Vibration motor with electric actuator HVL series

circularcementfor conveyors

Applications: Our HVL three-phase vibrating motors are used for • Conveying • Screening • Vibrating • Compacting • Loosening or whenever a continuous product stream or excitation of small masses is required.
The DV series of vibrating motors (see our P 150 brochure) is preferred for higher net loads (approx. 50 kg or more). Design: Our HVL series of three-phase vibrating motors has a housing made from high-quality gravity die cast aluminum. During rotation, the eccentric weights mounted on the two shaft ends produce a gyratory vibration, causing a vibrating motion to be impressed onto coupled parts, for example trough conveyors or screening machines. The working moment can be varied within the specified ranges by adjusting the eccentric weights, in order to adapt the conveying capacity and vibration intensity to individual applications.
 The generously dimensioned special bearings have lifelong lubrication (HVL 1/2, 3/2, 10/4, HVE 2/2-4, 9/2). The HVL 8/2 type features a regreasing mechanism. All non-explosion-proof motors are painted blue (RAL 5012) as standard while explosion-proof motors are red (RAL 2002).
