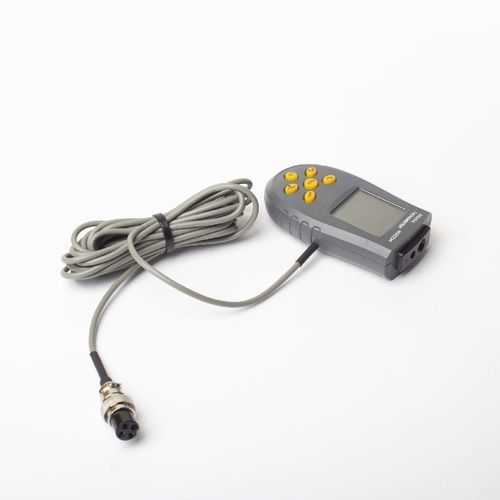

Laser tachometer Tach-1

handhelddigital

Tach-1 is a laser tachometer (phase / RPM reference sensor) for the Balanset series, based on a modified HS2234 module adapted for dynamic balancing. It supplies the once-per-revolution phase reference and rotational-speed measurement the balancing process requires, reading a reflective mark on the rotor from up to 2 m away. The 4.5 m cable allows flexible positioning on the machine.
Technical specifications:

• Model: modified HS2234
• Measurement range: 0.5 – 99,999 rpm
• Accuracy: ±(0.05% + 1 digit)
• Laser class: Class 2 (eye-safe)
• Detection distance: up to 2 m
• Cable length: 4.5 m

Use with Balanset-1A and Balanset-4. Requires reflective tape (rt-1) on the rotor.
