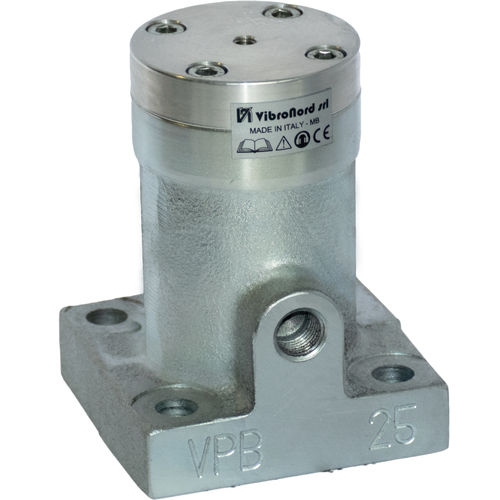

Pneumatic vibrator VPB 25 impactimpact pistonfor mills
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- impact, impact piston
- Product applications
- for mills, for silo, for hopper, for concrete, industrial, detergent, for dry food, for the pharmaceutical industry, cement, for mining equipment, construction, filtration unit, for tubes, for process water treatment units, for asphalt, for ceramics, for biomass, solid waste, for the recycling industry, for marble, handling, canning industry, for dairy products, incineration, chemical process, liquid fertilizer, for rubber and plastic applications, for powders, building
- Other characteristics
- galvanised steel
- Force
305 N, 660 N, 995 N
- Rotational speed
2,760 rpm, 3,840 rpm, 4,920 rpm
(17,341.6 rad.min-1, 24,127.4 rad.min-1, 30,913.3 rad.min-1)
Description
Our impact vibrators lineup features three device of different sizes to accommodate all the needs in the industry. Available both in galvanized and light blue.
• Light design
• Durability
• Available with noise reduction plate
A steel hardened piston excites the surface on which it impacts on. Our refined machining process ensure a long lasting industrial devic-es, used in a broad field of application, from food delivering to vision and industry 4.0 automation devices.
Recently, support solutions for robotic automated systems are being studied and implemented. In addition, it is possible to have a version with a Nylon plate for noise reduction.
Requirements
Lubricated and filtered (≤5μm) air is required
Operating pressure : from 2 to 6 Bar
Operating ambient temperature: -20°C to 100 °Cwe
