Pneumatic vibrator VPI 45
linearimpact pistonfor the food industry

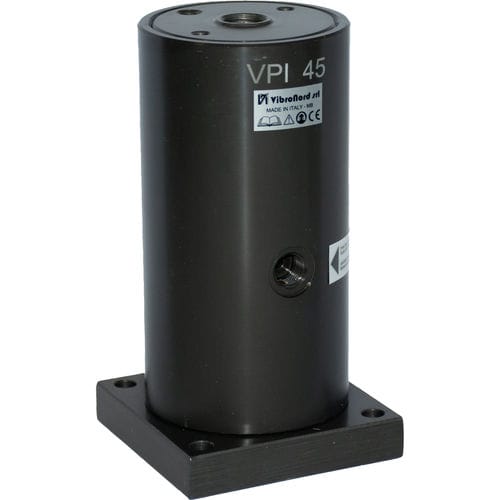

Pneumatic vibrator - VPI 45 - Vibronord - linear / impact piston / for the food industry
Pneumatic vibrator - VPI 45 - Vibronord - linear / impact piston / for the food industry
Pneumatic vibrator - VPI 45 - Vibronord - linear / impact piston / for the food industry - image - 2
Add to favorites
Compare this product
Go to the Vibronord website for more information

Characteristics

Operation
pneumatic
Type
linear, impact piston
Product applications
for the food industry, for hopper, for silo, industry, for the recycling industry, liquid fertilizer, for biomass, for mining equipment, for the pharmaceutical industry, cement, for process water treatment units, construction, for dry food, filtration unit, for asphalt, solid waste, for mills, for ceramics, for dairy products, for cisterns, for rubber and plastic applications, detergent, canning industry, for marble, incineration, chemical process, for overhead monorail conveyors
Other characteristics
aluminium, compact, bronze
Force

386 N, 680 N, 920 N

Rotational speed

1,740 rpm, 2,040 rpm, 2,400 rpm
(10,932.7 rad.min-1, 12,817.7 rad.min-1, 15,079.6 rad.min-1)

Description

The perfect solution for transport and handling lines, test benches or machinery with restricted areas thanks to theri small footprint • Extremely quiet • Unidirectional excitation • Resistant to extreme ambient conditions Our best-in-class linear vibrators lineup features four devices able to deliver uni-directional excitation at a very low noise level. Ideal solution for conveyors, test benches or installation in tight spaces thanks to their compact shape. Machined at the highest level of technology to ensure best-in-class longevity. Requirements Lubricated and filtered (≤5μm) air is required Operating pressure : from 2 to 6 Bar Operating ambient temperature: -20°C to 100 °Cwe
