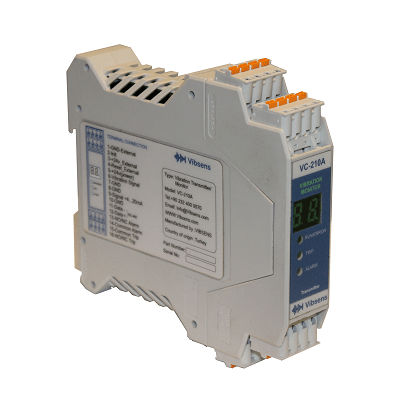

Continuous surveillance vibration transmitter VC-210A

seismicwith vibration conditionerwith vibration switch

VC-210A not only has the features of the above mentioned product VC-200A but also provides two separate relay outputs as Alarm and Trip, and also has a display which shows the overall vibration values and can transmit 4-20mA signal proportional to acceleration, velocity, or displacement to PLC/DCS or other recorders. Optional signal integration and status LED (OK/Alert /Danger) is provided for each module. Moreover, the ability to select alarm delay, bypass, latching or non-latching relays, energise and non-energised relays, Terminal for remote reset, Modbus RTU (RS-485) protocol communication are also supported in this device. • ICP® /Voltage/Current Transducer • Acceleration/Velocity/Displacement Output • Overall value 4-20mA Outputs • 2 output relays fully configurable with software • Buffered acceleration output • ICP® transducer OK status LED • DIN Rail Mounting • Push-in type connectors • Energize and De-energize relay selection • Delay shutdown function • Supported Modbus RTU Protocol
