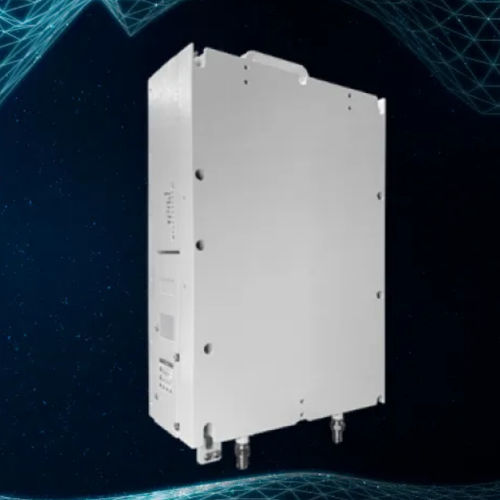

Outdoor base station Cornwall5G-016

Vicinity’s 4+5G Integrated High Power Base Station offers localized coverage in high-density areas or where macro base stations face limitations. These cost-effective, compact stations require less power and have lower deployment costs. They alleviate congestion, enhance network performance, and reduce total cost of ownership (TCO) by offloading traffic from macro base stations and optimizing spectrum utilization. Product Features Support two 2TR 5G cells and two 2TR 4G cells Remote management through OMC network management system Support MOCN（Multi-Operator Core Network）function Quick installation and deployment Specifications Standard 3GPP 5G Release 15 and LTE Release 13 Capability 5G: 2*40MHz 2TR cell, LTE: 2*10MHz 2TR cell System Capability 5G/LTE: 200 active UE; 400 connected UE per cell Synchronization GPS, 1588V2 SCS 5G: 15kHz@FDD, LTE: 15kHz@FDD Frequency N28+B8 IBW 5G: 10MHz/20MHz/30MHz LTE: 5/10MHz Output Power 5G: 2*60W, LTE: 2*60W Output Power Accuracy -40℃~+15℃: +/-1.5dB; +15℃~+30℃: +/-1dB; +30℃~+55℃: +/-1.5dB; EVM 5G: QPSK:<18.5%, 16QAM:<13.5%, 64QAM:<5%, 256QAM:<3.5% LTE: QPSK:<17.5%, 16QAM:<12.5%, 64QAM:<8% ALCR 5G/LTE: <-45dBc Dimension 530mm x 365mm x 153mm Input Power AC: 220V AC (100V～264V) Power Consumption <800W Frequency Error <0.05ppm Temperature - 40 ~ +55° C Weight <31 Kg Humidity 5% ~ 95% IP Grade IP65
