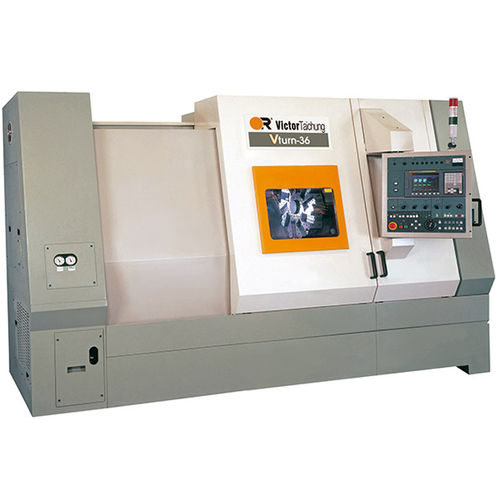

CNC turning center VTURN-363-axiscutting
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Other characteristics
- cutting
- Diameter
Min.: 0 mm
(0 in)Max.: 550 mm
(21.65 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 2,500 rpm
(15,707.963 rad.min-1)
Description
Genuine 45° slant bed for minimum
distance from Z-axis ball screw to the tool
tip.
Z-axis ballscrew diameter 50mm.
91mm bar capacity
Box slideways with hardness HRC 55 for
heavy cutting.
Kitagawa® hydraulic 12" chuck is offered
as standard.
2-step gearbox is included to further
enhance the cutting torque at low rpm.
Maximum turning length 855mm for
Vturn-36/85 and 1255mm for Vturn-36/125.
Available with C-axis spindle and live
tooling by German Sauter® VDI turret.
Special LSB option with spindle nose
A2-11 for bar capacity 160mm/1300rpm.
