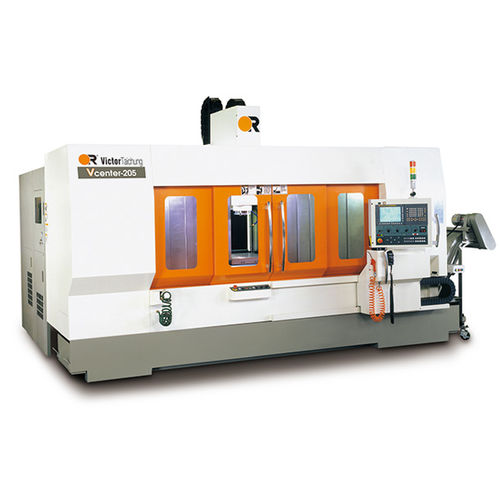

3-axis machining center VCENTER-205
verticaltraveling-column

3-axis machining center
3-axis machining center
3-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
traveling-column
X travel

2,050 mm
(81 in)

Y travel

550 mm
(22 in)

Z travel

560 mm
(22 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

Min.: 7.5 kW
(10.2 hp)

Max.: 18.5 kW
(25.15 hp)

Description

Vertical Machining Center Vcenter-205(traveling column) Designed by following extensive research and feedback from numerous machine tool users, Victor's new Vcenter-205 has been designed with a long fixed table to provide multi-tasking machining precision with 30 m/min rapid traverse in all axes. The traveling column enables pendulum loading and machining in cycle to reduce load/unload times and to maximize spindle utilization.
