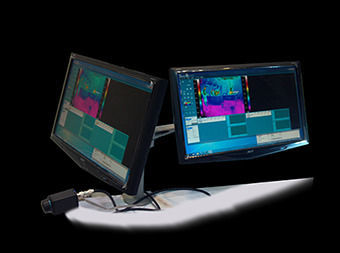

Thermographic camera HR Series

medicalfor research and developmentgigabit Ethernet

Measurement Method of Skin TemperatureFor medical research and product development.Overview:ThermalViewX HR series is a thermography system with a variety of functions, designed to meet the needs of users who primarily measure skin temperature and distribution. It features high sensitivity, movie functions, differential and statistical methods, feature extraction, and AI support for research and analysis.Types Available:Type OType RType SRType SCType O:Equipped with an offset function, Type O is suitable for research and development, enhancing measurement accuracy. It corrects thermography measurement errors by using a separate reference temperature for calibration.Main features of Type O:Offset function calibrating to a reference temperature: Unlike cooling-type thermographic cameras, standard thermographic cameras are more susceptible to environmental influences, causing fluctuations in measurements. The offset function allows adjustment to a reference temperature, enhancing accuracy and consistency. Compensation is provided for each sensitivity level, allowing offsets across the entire range.Continuous still image capture: Possible to continuously capture still images for a set number. Record temperatures in motion like a video, or take multiple shots to choose the best one. Each frame is timestamped to the millisecond. Data can be converted into AVI video format. Watch the video.Easy comparison in real time: Two-screen display for immediate comparison. Live images on the left, saved images on the right, for easy side-by-side comparison.Simultaneous adjustment of two temperature bars: Each screen has its own temperature bar for adjusting temperature and color, with an additional function to synchronize both, making it easy to display the same range on both screens.Compatible Cameras (Type O):ThermalViewX HR32-XA0351: Compact thermography for skin temperature measurement and thermal analysis. 80,000 pixels, NETD ThermalViewX HR64-XA0650: Compact, high-performance camera with high sensitivity and high resolution, over 320,000 pixels, ideal for precise temperature measurements of very small areas.ThermalViewX HR46-XA0500: Next-generation high-sensitivity model, NETD Type R:Essential analysis software for biological measurements. Designed for research and development, equipped with interval thermal imaging measurement, interval CSV output, offset function, and video measurement capabilities.Main features of Type R:High-end type with sufficient features for development.Interval video measurement: Capture images at set intervals (1 second to 2 hours) to monitor temperature changes over time without generating excessively large data files.Interval CSV output: Export temperature data from specified points to a CSV file at intervals (1 second to 2 hours), ideal for graphing in Excel or similar applications.Offset function: Adjust measurements to a reference temperature for enhanced accuracy and consistency.Video recording: Capture a continuous series of still images, each frame timestamped to the millisecond.Compatible Cameras (Type R):ThermalViewX HR32-XA0351ThermalViewX HR64-XA0650ThermalViewX HR46-XA0500Type SC:Specialized for screening, dedicated to fever detection, equipped with HR series technology for biological and human applications, designed based on public health principles.Main features of Type SC:Thermographic camera dedicated to screening for fever detection.Thermal image clarifies temperature differences: Uses color tone curves and isotherms to visually present threshold values and extract distinctive colors.Various screening variables: Multiple detection criteria and thresholds can be set to reduce false positives/negatives.Various notification methods: Alert via PC speakers, screen color changes, or isotherms. Customizable alert sounds.Easy startup and network compatibility: Simple connection and startup, IP connectivity for remote monitoring.Compatible Cameras (Type SC):ThermalViewX HR32-SCA0351ThermalViewX HR64-SCA0650ThermalViewX HR64-SCA6150General Features:High sensitivity and high resolutionGigabit Ethernet communicationOffset calibration for accuracyInterval and continuous video/still image captureCSV data exportReal-time and comparative displayAI-supported analysisNetwork and remote monitoring supportTechnical Specifications (varies by model):Resolution: 80,000 to 320,000+ pixelsNETD: Connectivity: Gigabit Ethernet, IP networkVideo format: AVICSV export: 1 second to 2 hours interval
