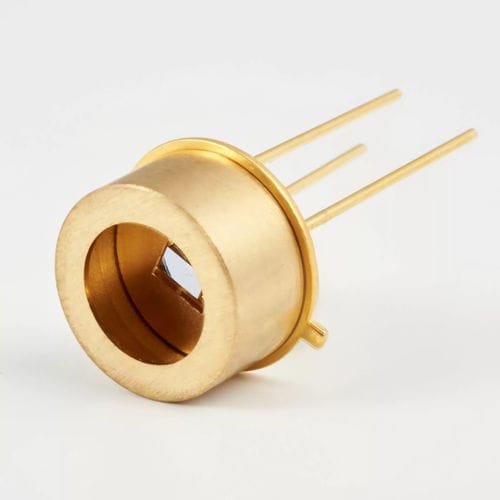

IR photovoltaic detector PVM-10.6-1x1-TO39-NW-90

HgCdTefor gas analysisfor FTIR spectroscopy

PVM-10.6-1x1-TO39-NW-90 is an uncooled photovoltaic multi-junction IR detector based on HgCdTe heterostructure for optimal performance and stability. Its specific wavelength (λspec) is 10.6 µm and its active area (A) is 1 mm × 1 mm. The detector is available in the TO39 package without a window. Features Spectral range: 2.0 to 12 µm Large active area Back-side illuminated Fast response Room temperature operation No bias required No 1/f noise No minimum order quantity required Applications Gas detection, monitoring and analysis: SO2, NH3, SF6 CBRN threats detection CO2 laser measurements: power monitoring and control, beam profiling and positioning, calibration Free-space optical communication FTIR spectroscopy Bacteria identification in medicine Dentistry Glucose sensing
