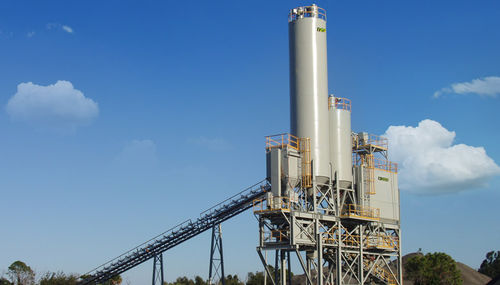

Stationary concrete batching plant MILLENNIUM

MILLENNIUM CONCRETE BATCH PLANT CONCRETE BATCH PLANTS The Vince Hagan Millenium plant is designed to consistently load a truck in two minutes or less. The Millenium is a stationary dry batch plant with a modular design that provides for easy set-up and built-in safety features. All components are accessible from safety platforms and walkways on every level of the plant. SPECIFICATIONS 36″ high-speed batch belt with 40 hp drive and 45 degree troughing idlers rated at 450 FPM for high speed feed of aggregate into a truck mixer. 200 ton 4 compartment aggregate bin (350 ton option) Up to two 1200 bbl. two compartment silo cement storage 14 cubic yard batchers (700 cu. ft. aggregate weigh batcher/140 cu. ft. cement weigh batcher) FEATURES Special high speed discharge hood for faster truck charging Auto belt start-stop switch with alarm to assure trucks are not overcharged Weighed water system with 10″ discharge water valve and admix manifold High wind design up to 145 mph wind zone Motor starter NEMA panel is ULC certified Completely plumbed for air systems, water systems and electrical systems to meet NEC and UL listing All production rates theoretical CPMB (Concrete Plant Manufacturers Bureau) rated and plated
