Mechanical exoskeleton Bb+PROⅢ

passivefor motion assistancelumbar support

Product overview

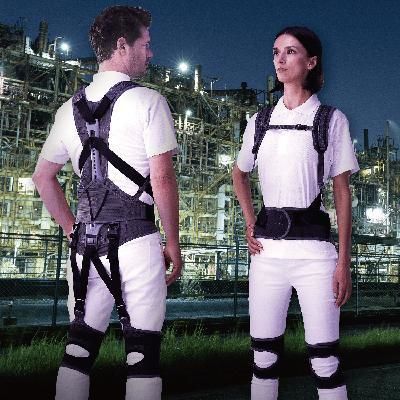

A high-performance assist suit designed to support heavy lifting and diverse work environments, stabilizing posture and reducing back strain. The SUPPORT JACKET Bb+PROⅢ integrates backbone guidance, lumbar stabilization, and leg-muscle assistance to reduce stooping posture and the load on the lower back during repetitive lifting tasks.

Main functions

• Form navigation function: The uniquely developed Bb+ (Backbone Plus) guides the spine and lower back into an ideal posture, reduces stooping posture associated with work, and decreases strain on the back and hips.
• Lumbar support function: A large belt stabilizes and protects the lower back by wrapping the spine, abdominal muscles, and back muscles to maintain abdominal pressure and reduce strain on the lower back and spine during work.
• Muscle function: A muscle belt runs from the knees to the waist to support leg muscles, assisting bending forward and getting up while working and reducing muscular strain.

Unique features / Improvements

• Detachable bone mechanism: The backbone is removable so the fabric part can be washed in a washing machine.
• Bb belt: Two types of belts are included and can be replaced to suit preference; the backbone fits the back to maximize reaction force effect.
• Side ab belt: Tightens along the abdominal oblique muscles to stabilize the trunk and improve the sense of hold; adjustable, replaceable, and removable.
• Sliding chest belt: Chest belt height is easily adjusted by sliding.
• W-lock knee belt: Non-slip fabric and additional tightening belts on top and bottom prevent slipping and make squatting easier.
• Breathable fabric: Made with breathable fabric for added comfort.

Pressure measurements on lumbar discs
Measured pressure when raising a 10kg load from the floor to the desk. *Assuming the wearer is 172 cm tall and weighs 64 kg. Verification: 10 healthy adult males performed 30 lifts over 10 minutes; angles were analyzed and assessed with REBA method per ISO/TR12296.

With or without the SUPPORT JACKET Bb+
Without : 66.6°
With PROⅢ : 49.1°

Improved trunk forward tilting angle when wearing the SUPPORT JACKET Bb+
Reduced by 13.2° - 17.5°
<Momentary load pressure reduced by 18.3 kg - 22.5 kg>

Pressure reduction effect on lumbar disks when repeating the same movement 100 times for five days
Reduction of 11,228 kg (approx. 11.2 t)
<Further effect can be obtained for more frequent movement>

How to wear / Support media
Instructional videos demonstrating introduction and how to wear the SUPPORT JACKET Bb+PROⅢ are available (product-specific wearing instructions and introduction videos).

Size chart (unisex)
*If in doubt, a larger size is recommended.
Size (cm) columns: S–M | L–3L | 3L–5L
Around the waist (around the pelvis): 78–96 | 92–116 | 110–140
Around the upper and lower knees: 23–34 | 29–43 | 38–52
Height: 155–172 | 168–192 | 178–200

Precautions for use

• This product is not intended to treat any physical disease.
• There are individual differences in the effects of the functions claimed by this product.
• Do not wear if you have injury or poor blood circulation, a current injury to shoulder/chest/knee or the area where product will be worn, if pregnant or possibly pregnant, or if you have scars, rashes, eczema or other abnormalities, or other medical conditions.
• Wear correctly and stop use immediately if any abnormality is felt during use.
• Product specifications are subject to change without notice. Read the instruction manual and use correctly.

Caractéristiques / spécifications techniques

• Model: Bb+PROⅢ
• Manufacturer's suggested retail price (tax not included): $800.00
• Belt dimensions: Front width 150 mm - Back width 220 mm
• Color: gray
• Material: Polyester, nylon, polyurethane, polypropylene; POM, silicone
• Included: Two types of Bb belts (interchangeable), side ab belt, sliding chest belt, W-lock knee belt; detachable backbone mechanism (removable bones)
• Fabric: Breathable fabric for comfort
• Size ranges (waist/pelvis): S–M 78–96 cm; L–3L 92–116 cm; 3L–5L 110–140 cm
• Shipping: Ships within 3 working days (as stated on product page)
